Stainless Steel Decorative Metal Cladding / Architectural Wire Mesh

Name: Stainless Steel Decorative Metal Cladding Architectural Wire Mesh
Brand: ERIC
Price: 1 USD

Brand Name : ERIC

Model Number : ER-90

Certification : ISO9000

Place of Origin : DINGZHOU

MOQ : 10meter

Payment Terms : T/T L/C

Supply Ability : 1000meter per day

Delivery Time : 10days

Packaging Details : waterproof paper with wooden box

material : stainles steel wire

weaving : plain weaving

wire diameter : 2nnx4mm

cable diameter : 2mm x 4

rod diameter : 3mm

cable pitch : 44mm

weight : 12.5kg/square meter

hole size : 5mm-50mm

open area : 40%60%

rope : rope mesh

Contact Now

Stainless Steel Decorative Metal Cladding / Architectural Wire Mesh

Materials: Stainless steel, aluminium, aluminum alloy,copper, phosphor bronze, etc.
Weaving Pattern:weave. Characters: wall decoration bright, acid-resistance, alkali-resistance, heat-resistance, Tension strength-resistance.

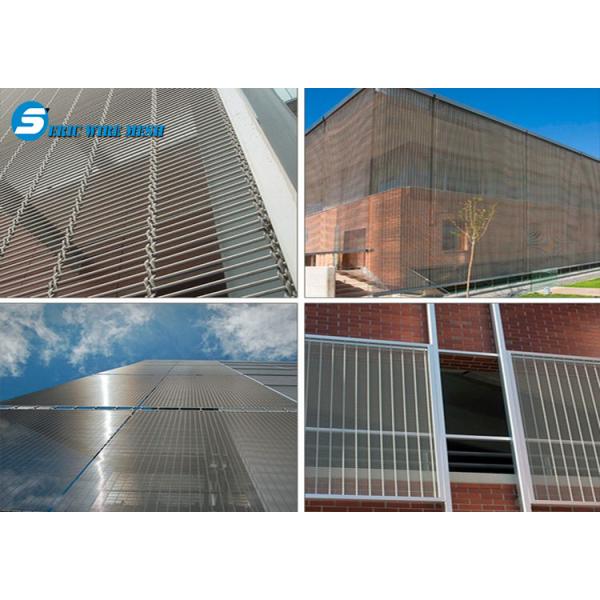

Uses: wall decorative architectural mesh for example curtains, screens for dining hall, isolation in hotels, ceiling decoration, Animal containment and security fencing, etc.
Features:
1.Aesthetic appeal; 2.Versatile; 3. Architecturally inspired; 4.Variety of openings and sizes; 5.Unique design and appearance; 6.Style and functionality

Stainless Steel Decorative Metal Cladding / Architectural Wire Mesh

design	open area	cable wire dia.	cable pitch	bar dia.	bar pitch	thickness	wt
1	40%	1x1.8 mm	4 mm	1.5 mm	5.5 mm	5.1 mm	7.74kg/m2
2	43%	1x2.5 mm	6 mm	2 mm	8 mm	5.5 mm	7.87kg/m2
3	62%	2x2.75 mm	40 mm	4 mm	14.5 mm	9.5 mm	9.41kg/m2
4	37.20%	3x0.5 mm	3.5 mm	0.5 mm	1.4 mm	1.3 mm	2.4kg/m2
5	71%	3x1.6 mm	80 mm	2.5 mm	10 mm	5.7 mm	4.58kg/m2
6	65%	3x2 mm	80 mm	3 mm	10 mm	7 mm	6.67kg/m2
7	65.90%	3x2.75 mm	110 mm	4 mm	14.5 mm	10 mm	8.5kg/m2
8	67%	3x3 mm	110 mm	4 mm	14.2 mm	10 mm	8.6kg/m2
9	44.30%	4x0.75 mm	26.4 mm	1.5 mm	3 mm	3 mm	5.2kg/m2
10	62%	4x1 mm	36 mm	2 mm	6.6 mm	4 mm	4.55kg/m2
11	40%	4x2 mm	50 mm	3 mm	6 mm	7mm	11.2kg/m2
12	42%	4x2 mm	50 mm	3 mm	6 mm	7 mm	11.8kg/m

Stainless Steel Decorative Metal Cladding / Architectural Wire Mesh

http://www.ericwiremesh.com

Stainless Steel Decorative Metal Cladding / Architectural Wire Mesh Images
